Reinforced Concrete Beam Design Example

Statement

A single reinforced rectangular beam has a width of 11” and effective depth of 18”. If f’c = 3ksi and fy is 40ksi. Calculate the moment capacity M_n, if A_s= 5in²

Given

Width of beam = b = 11”
Effective depth of reinforced concrete beam = d = 18”
f’c = 3 Ksi
Fy = 40 ksi
A_s= 5in²

Required

Moment capacity of the reinforced concrete beam = ?

Solution

Given problem is the analysis case. For understanding the solution, one must should have ACI 318M-08 building code.

find steel ratio by using formula defined by ACI 318M-08

Ρ = AS/bd = 5/(11*18) = 0.025

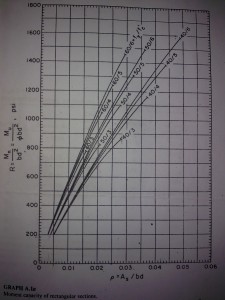

Now find respective value of “R” from Graph A.1a (Moment capacity of Rectangular beam)

moment capacity of reinforced concrete beam graph — Steel ratio vs R graph (Design Aids)

$R = frac{M_{n}}{bd^{2}}$

R = 800 Psi

$M_{n} = {bd^{2}}*{R}$

Mn =2851.2 K-in.
